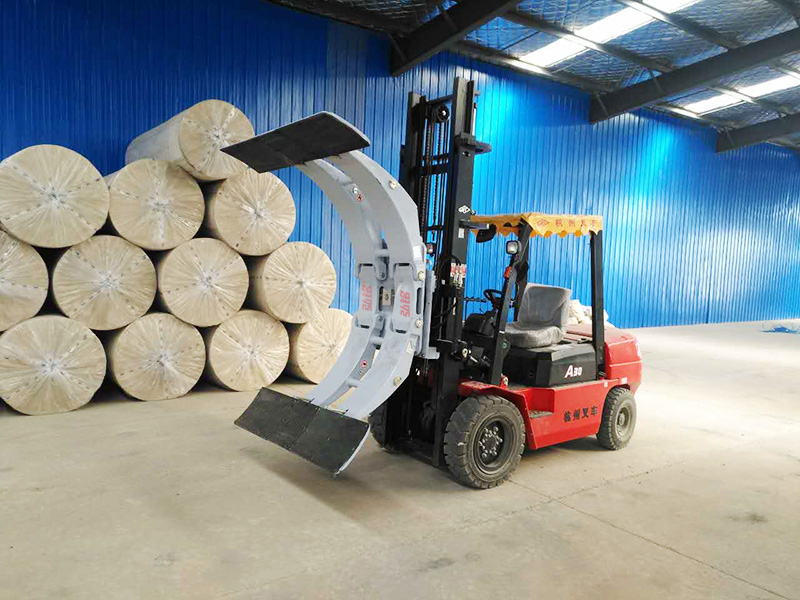

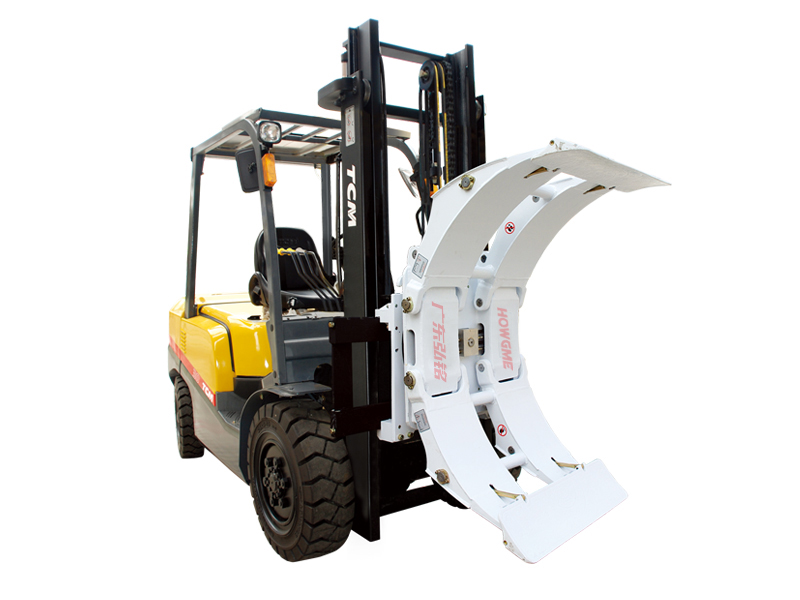

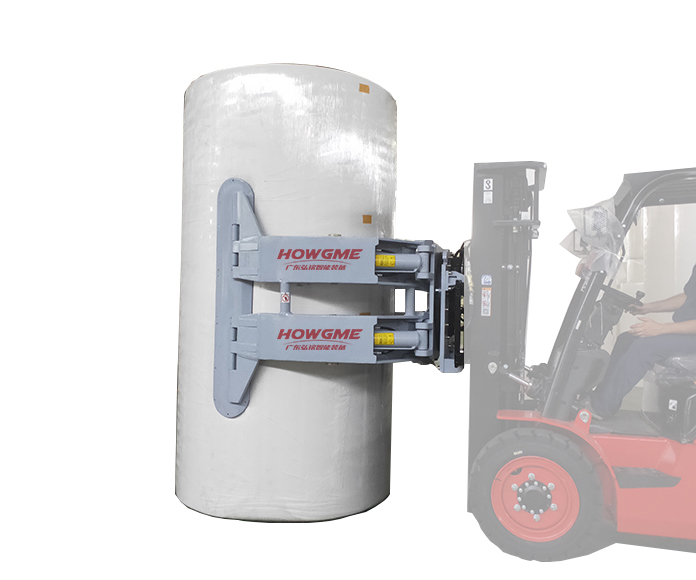

Paper Roll Clamp

Product Name: Standard paper roll clamp

Paper Roll Clamp
• Reasonable design, compact and beautiful structure, being easy to operate and with higher working efficiency.
• Two-way continuous rotation within the range of 360° and the clamp arm can be controlled at any angle.
• Stable operation and a long service life.
• Stable rotation operation can be guaranteed due to its stable deceleration device and hydraulic motor.
Product Parameters
Inquiry
Product Parameters
Mainly used in such fields as papermaking,printing and paper carton for loading and unloading of circular substances.

紙卷抱夾叉車|叉車圓抱夾|叉車圓紙夾|圓抱夾價(jià)格|圓紙夾型號(hào)
Model Carrying Capacity Size of Clamp Size Opening Range Installation Grade Self-weight Load Loss Distance Horizontal Center of Gravity Vertical Center of Gravity

(Kg) A1-A2(mm) D1-D2(mm)
(Kg) >L(mm) C2(mm) C1(mm)
PCM20A-E13H 2000 890-606 580-1350 2/3 660 195 320 380
PCM20B-E13H 2000 890-606 250-1350 2/3 682 195 330 388
PCM20A-E13S 2000 890-606 580-1350 2/3 675 195 325 380
PCM20B-E13S 2000 890-606 250-1350 2/3 697 195 335 388
PCM20A-E14H 2000 895-606 450-1400 2/3 665 195 320 380
PCM20A-E15H 2000 948-677 580-1520 2/3 700 208 380 383
PCM20B-E15H 2000 948-677 250-1520 2/3 728 208 380 380
PCM20A-E15S 2000 948-677 580-1520 2/3 708 208 383 383
PCM20B-E15S 2000 948-677 250-1520 2/3 735 208 385 380
PCM20A-E16H 2000 952-576 600-1600 2/3 726 244 336 383
PCM20B-E16H 2000 952-576 300-1600 2/3 748 244 344 380
PCM25A-E13H 2500 890-606 580-1350 3 685 235 323 380
PCM25A-E14H 2500 895-606 450-1400 3 740 235 323 380
PCM25B-E13H 2500 890-606 250-1350 3 700 235 333 388
PCM25A-E13S 2500 890-606 580-1350 3 745 235 328 380
PCM25B-E13S 2500 890-606 250-1350 3 760 235 338 388
PCM25A-D15H 2500 948-677 580-1520 3 808 248 318 408
PCM25B-D15H 2500 948-677 250-1520 3 813 248 380 380
PCM25A-D15S 2500 948-677 580-1520 3 818 248 383 383
PCM25B-D15S 2500 948-677 250-1520 3 823 248 325 408
PCM25A-E16H 2500 952-576 600-1600 3 812 248 340 399
PCM25B-E16H 2500 952-576 300-1600 3 837 248 348 383
PCM30A-D16H 3000 948-677 600-1600 3 886 250 348 408
PCM30B-D16H 3000 948-677 300-1600 3 908 250 380 380
PCM30A-D18H 3000 1052-860 780-1800 3/4 928 250 345 408
PCM30B-D18H 3000 1052-860 300-1800 3/4 952 250 395 383
PCM30A-D19H 3000 1052-860 850-1900 3/4 980 250 395 408
PCM35A-E13H 3500 890-606 580-1350 3/4 883 251 338 384
PCM35B-E13H 3500 890-606 250-1350 3/4 906 251 346 388
PCM35A-E16H 3500 984-836 600-1600 3/4 943 252 352 413
PCM35B-E16H 3500 984-836 300-1600 3/4 967 252 347 407

Remarks:
1. Please get the actual comprehensive bearing capacity of forklifts and their attachments from the factory.
2. The clamping and rotation are added with one more oil circuit respectively.
3. A stands for one arm movable, B, two arms movable, D, the fourth generation product, E, the fifth generation product; H, anti-skidstripe steel splint, and S, anti-damage plastic splint.
4. The various types listed above are the common products of Sino-German Nnookee, and other types of products can also be supplied in accordance with different brands of forklifts and special working conditions.
