Tyre Clamp

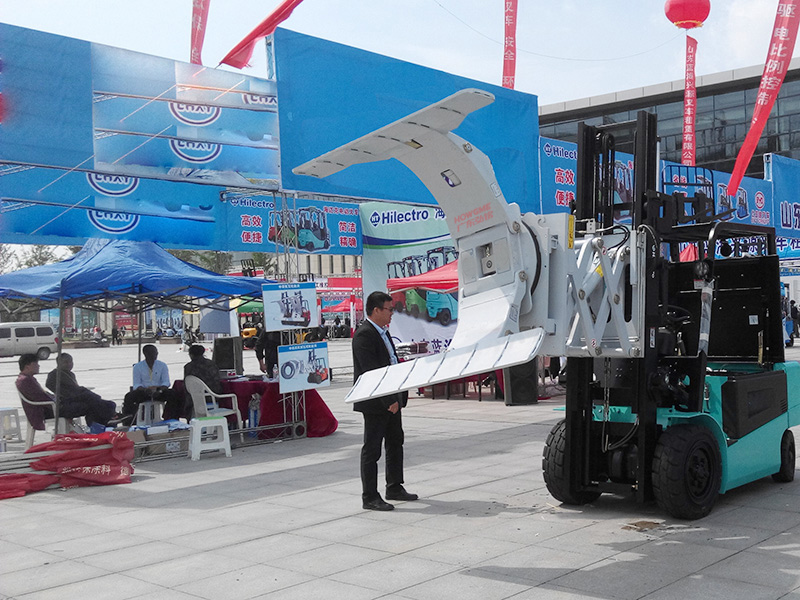

Product Name: Single arm Tyre Clamp

Tyre Clamp
• The ingenious clamp arm design with a smooth surface and small thinness enable it to be operated in a narrow space and reduce the damage to a tire.
• High safety performance is ensured for its two-way hydraulic rotation within 360°and self locking at any angle.
• The hydraulic elements are designed to be reasonable and durable.
• The compact structure and light weight increase the forklift’s service life.
Product Parameters
Inquiry
Product Parameters
It can realize the safe and efficient carrying and stacking of various tires without the use of pallets, and greatly reduces work intensity, saves large amount of storage room and improves work efficiency.


Model Carrying Capacity Frame dimension Opening range Installation Grade Self-weight Load Loss Distance Horizontal Center of Gravity Verticla Center Gravity

Kg A1×A2(mm) (mm)
Kg L(mm) C1(mm) C2(mm)
TSC15A-E13C 1500 890-606 580-1350 2 580 260 296 279
TSC15A-E13F 1500 890-606 580-1350 2 620 260 296 279
TSC15B-E13C 1500 890-606 250-1350 2 610 260 296 279
TSC15B-E13F 1500 890-606 250-1350 2 650 260 296 279
TSC15A-E16C 1500 984-836 600-1600 2/3 626 268 323 304
TSC15A-E16F 1500 984-836 600-1600 2/3 646 268 323 304
TSC15B-E16C 1500 984-836 300-1600 2/3 648 268 323 304
TSC15B-E16F 1500 984-836 300-1600 2/3 688 268 323 304

Remarks:
1.Please get the actual comprehensive bearing capacity of forklifts and their attachments from the factory.
2.The clamping and rotation are added with 1 more oil circuit each respectively.
3.A stands for fixed short arm, B, adjustable short arm, E, single arm, C clamping plank size 1100mm ,and F,clamping plank size 1500mm.
4.The various types listed above are the common products, and other types of products can also be supplied in accordance with different brands of forklifts and special working conditions.
