Drum Clamps

Product Name: Rotary drum clamp

Drum Clamps
• The anti-skid rubber sheet in the clamp is safe, efficient and replaceable.
• A pressure retaining valve is equipped to avoid damage to the goods due to the abrupt crack of the oil pipe.
• Simple in structure and easy for maintenance.
• High safety performance is ensured for its two-way hydraulic rotation within 360°and self locking at any angle.
• The reasonable design of the hydraulic elements makes the hydraulic system get good protection and a long service life.
• The selection of wear-proof strip of German Bayer’s material effectively prevents the guide axis and guide slot from abrasion.
• Suitable for any kind of forklift.
Product Parameters
Inquiry
Product Parameters

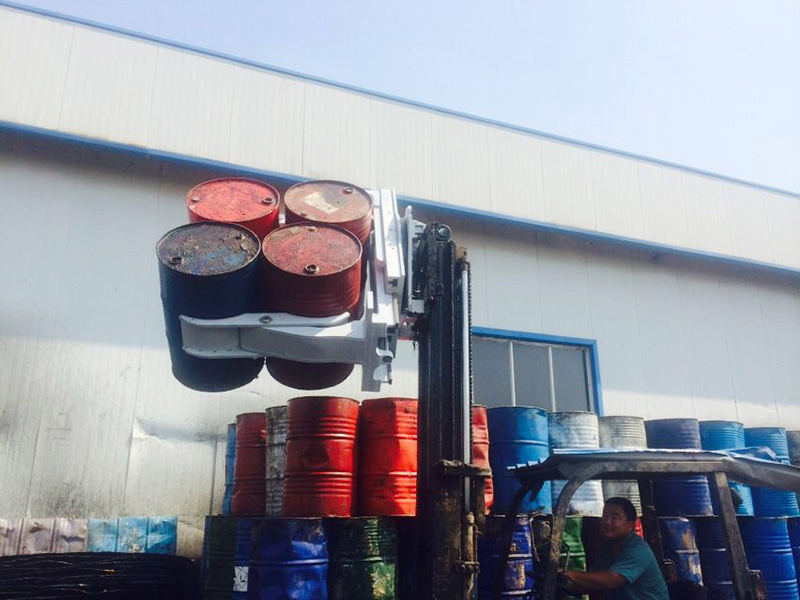

It is applied to the no-pallet carrying and stacking of metal drums such as hydraulic oil drums, column drums, dustbins, etc, in the petroleum and chemical industries, where goods in drums need to be dumped.

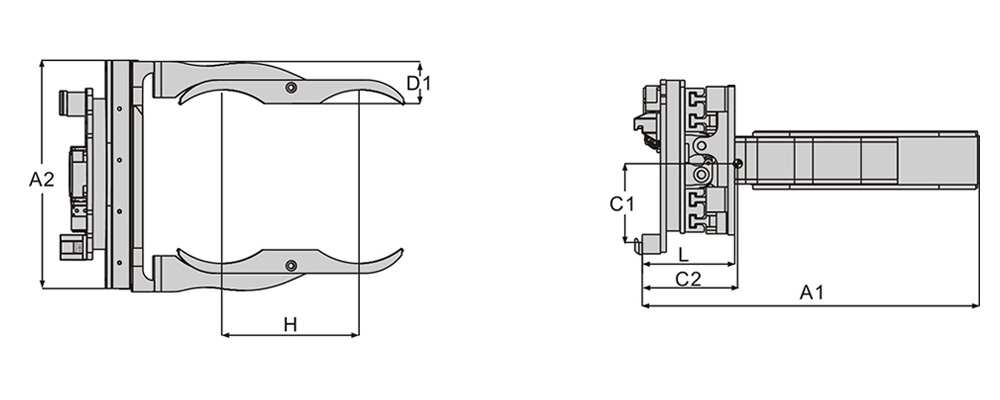

Model Carrying Capacity Frame dimension Rotation Opening range Installation Grade Self-weight Load Loss Distance Horizontal Center of Gravity Verticla Center Gravity
Kg A1×A2(mm) (mm) Kg L(mm) C2(mm) C1(mm)
RQE10A-E16H 1000 1470×1000 360° 400-1600 2 841 300 257 288
RQE10A-E17H 1000 1470×1100 360° 450-1700 2 857 300 257 288
RQE15A-E16H 1500 1470×1000 360° 400-1600 2/3 841 302 257 288
RQE15A-E17H 1500 1470×1100 360° 450-1700 2/3 857 302 257 288
RQE20A-E16H 2000 1475×1000 360° 400-1600 3 863 305 262 290
RQE20A-E17H 2000 1475×1100 360° 450-1700 3 879 305 262 290

Remarks:
1.Please get the actual comprehensive bearing capacity of forklifts and their attachments from the factory.
2.The clamping and rotation are added with one more oil circuit respectively.
3.A stands for standard, E, the fifth generation product and H, double/four drums.
4.The various types listed above are the common products of Sino-German Nnookee, and other types of products can also be supplied in accordance with different brands of forklifts and special working conditions.
