Fork Clamps

Product Name: Revolving Fork Clamps

Fork Clamps
• A pressure retaining valve is equipped to avoid damage to the goods due to abrupt crack of oil pipe.
• High safety performance is ensured for its two-way hydraulic rotation within 360°and self locking at any angle.
• Every connecting pin and axle are made of alloy and manufactured through three-process treatment.
• With compact structure, beautiful, efficient and easy to operate, raising working efficiency.
• Suitable for any kind of forklift.
Product Parameters
Inquiry
Product Parameters
Applied to the carrying, loading, unloading and stacking of various kinds of soft bale goods such as waste paper, cased goods, waste plastics, chemical fiber, etc, without pallets or with regular pallets.

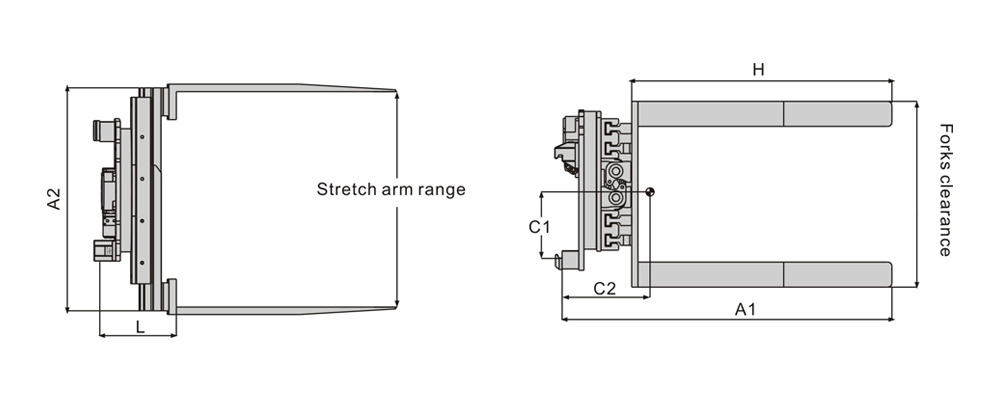

Model Carrying Capacity Frame dimension Length of fork Opening range Installation Grade Self-weight Load Loss Distance Horizontal Center of Gravity Verticla Center Gravity

Kg A1×A2(mm) (mm) (mm)
Kg L(mm) C2(mm) C1(mm)
RDM15A-G17B 1500 1490×1000 1050 560-1760 2 895 408 314 259
RDM15A-G19B 1500 1490×1100 1050 620-1900 2 912 408 314 259
RDM15A-G19C 1500 1640×1100 1200 620-1900 2/3 927 408 314 261
RDM15A-G20B 1500 1490×1200 1050 680-2000 2/3 928 408 314 261
RDM15A-G20C 1500 1640×1200 1200 680-2000 2/3 943 408 314 261
RDM20A-G19C 2000 1643×1100 1200 620-1900 3 937 409.5 316 261
RDM20A-G20C 2000 1643×1200 1200 680-2000 3 943 409.5 316 261
RDM20A-G21F 2000 1793×1200 1350 730-2300 3 955 409.5 322 265

Remarks:
1.Please get the actual comprehensive bearing capacity of forklifts and their attachments from the factory.
2.The clamping and rotation are added with 1 more oil circuit respectively.
3.A stands for standard, G, revolving four-fork,and B,C and F, fork length.
4.The various types listed above are the common products and other types of products can also be supplied in accordance with different brands of forklifts and special working conditions.
