Drum Clamps

Product Name: Forward tilt bucket clamp

Drum Clamps
• The anti-skid rubber sheet in the clamp is safe, efficient and replaceable.
• An intelligent valve is equipped to automatically adjust the oil-pressure flowrate for avoiding damage to a metal drum.
• Simple in structure and easy for maintenance.
• The inclined column bearing in the forward-tilting part ensures high stability and durability.
• The reasonable design of the hydraulic elements makes the hydraulic system get good protection and a longer service life.
• The selection of wear-proof strips of German Bayer’s material effectively prevents the guide axis and guide slot from abrasion.
Product Parameters
Inquiry
Product Parameters
It is applied to the no-pallet carrying and stacking of metal drums such as hydraulic oil drums, column drums, dustbins, etc, in the petroleum and chemical industries where goods in drums need to be dumped safely and effectively.

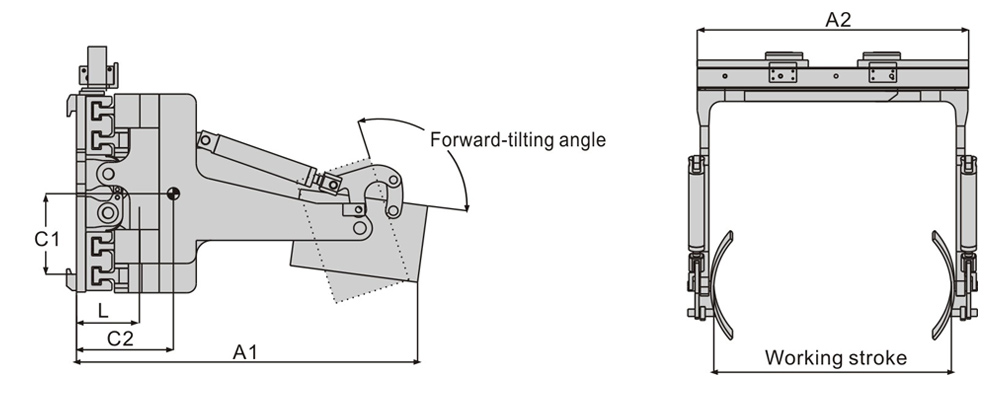

Model Carrying Capacity Frame dimension Forward-tilting angle Opening range Installation Grade Self-weight Load Loss Distance Horizontal Center of Gravity Verticla Center Gravity

Kg A1×A2(mm)
(mm)
Kg L(mm) C2(mm) C1(mm)
JDE05A-E15L 500 1175×1000 120°-150° 350-1500 2 646 165 273 270
JDE10A-E15L 1000 1175×1000 120°-150° 350-1500 2 646 165 273 270
JDE15A-E15L 1500 1178×1000 120°-150° 350-1500 2 667 168 277 272
JDE20A-E15L 2000 1178×1000 120°-150° 350-1500 2/3 678 168 277 272

Remarks:
1.Please get the actual comprehensive bearing capacity of forklifts and their attachments from the factory.
2.The clamping and forward-tilting are added with one more oil circuit respectively.
3.A stands for standard, E, the fifth generation product, and L, forward-tilting.
4.The various types listed above are the common products , and other types of products can also be supplied in accordance with different brands of forklifts and special working conditions.
