Tyre Clamp

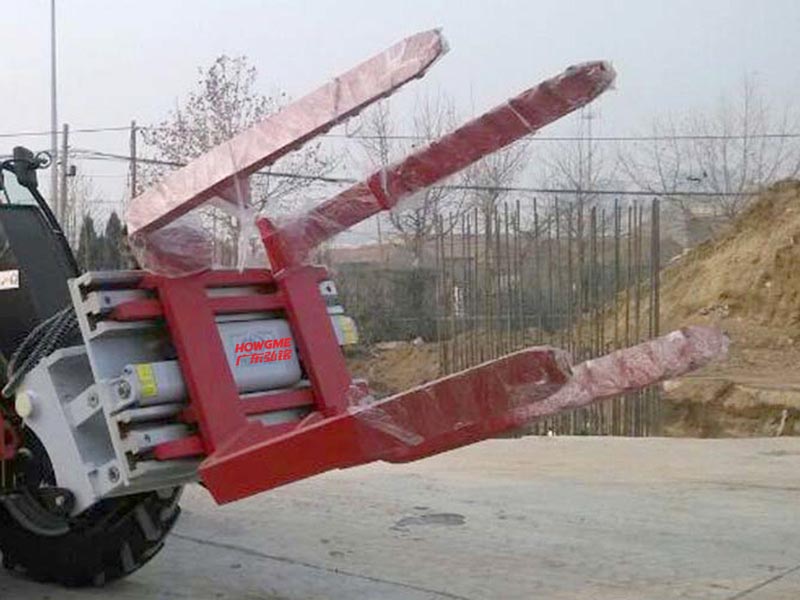

Product Name: Fork sleeve Tyre Clamp

Tyre Clamp
• High safety performance is ensured for its two-way hydraulic rotation within 360°and self locking at any angle.
• A pressure retaining valve is equipped to avoid damage to the goods due to abrupt crack of oil pipe.
• Reasonable design and easy for maintenance.
• Compact structure and broad view.
• The e-shaped groove made of aluminum alloy reduces the dead weight of a product and increases a forklift’s service life.
• The fast-changing fork sleeve enables one forklift to possess two purposes.
• The selection of wearing strips of German Bayer’s material effectively prevents the guide axis and guide slot from abrasion.
Product Parameters
Inquiry
Product Parameters

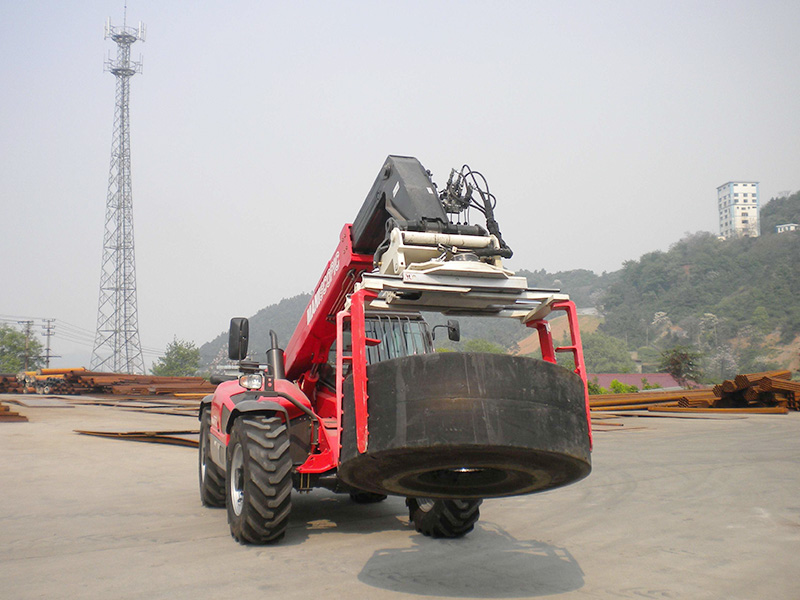

It is applied to the carrying, loading, unloading and stacking tires of various large engineering machines to reduce work intensity and realize safe and efficient operation without the use of pallets.

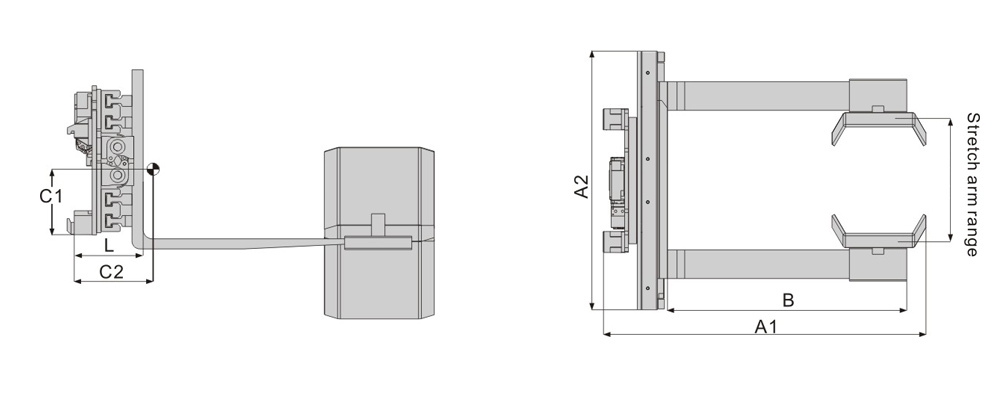

Model Carrying Capacity Frame dimension Length of fork Opening range Installation Grade Self-weight Load Loss Distance Horizontal Center of Gravity Verticla Center Gravity

Kg A1×A2(mm) (mm) (mm)
Kg L(mm) C2(mm) C1(mm)
TSC15A-D22C 1500 1450×1600 1050 600-2200 2 775 379 274 268
TSC15A-D22F 1500 1580×1600 1200 600-2200 2 786 379 276 270
TSC15A-D22H 1500 1730×1600 1350 600-2200 2 798 379 282 274
TSC15A-D22J 1500 1880×1600 1500 600-2200 2 810 379 288 279
TSC15A-D20F 1500 1580×1600 1200 550-2000 2/3 771 379 276 268
TSC15A-D20H 1500 1730×1600 1350 550-2000 2/3 783 379 282 272
TSC20A-D22C 2000 1453×1600 1050 600-2200 2/3 810 384 274 268
TSC20A-D22F 2000 1583×1600 1200 600-2200 2/3 823 384 276 270


Remarks:
1.Please get the actual comprehensive bearing capacity of forklifts and their attachments from the factory.
2.Clamp and forward-tilting are added one more oil circuit each respectively.
3.A stands for standard,  D, fork sleeve, C ,F,H and J ,fork length.
4.The various types listed above are the common products, and other types of products can also be supplied in accordance with different brands of forklifts and special working conditions.
