Fork Positioners

Product Name: Fork Positioners

Fork Positioners
• Quick shfting forks and hooks are flexible and convenient;
• Excellent hydraulic components make to increasa the service life;
• Good driver visibility;
• Rigid and wearable alloy frame ensures the serviceability and low maintenance cost;
• The side shifting positioning is more efficient in using;
• Programmable for single fork positioning.
Product Parameters
Inquiry
Product Parameters
It is applicalie for irregular freight yards in machinery,port,ceramic,building material and agricultural industries and each occasion,in which there are no pallets.It carries different cargos of different pallets by adjusting the distance between fork and cargos.Aad it is no need for manual adjustment that it reduces the labor intensity of the operators and improves the efficiency,as well as reduces the breakage of cargos.

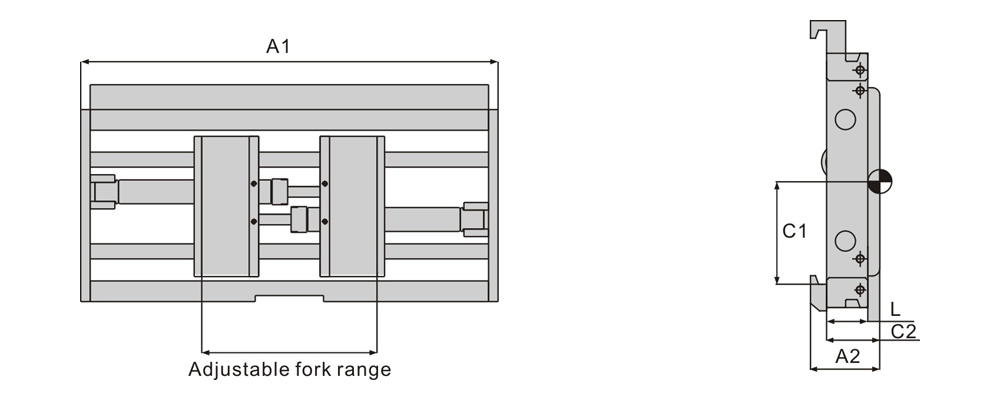

Model Carrying Capacity Frame dimension Range of fork positioning Installation Grade Self-weight Load Loss Distance Horizontal Center of Gravity Vertical Center of Gravity
(Kg) A1×A2(mm) (mm) (Kg) L(mm) C2(mm) C1(mm)
TSM20A-C10F 2000 120×1100 89-1000 2 168 77 44 265
TSM20B-C10F 2000 120×1100 89-1000 2 168 77 44 265
TSM25A-C10F 2500 138×1100 80-1000 2 168 77 44 265
TSM25B-C10F 2500 138×1100 80-1000 2 168 77 44 265
TSM30A-D11F 3000 138×1200 70-1100 3 205 82 55 320
TSM30B-D11F 3000 138×1200 70-1100 3 205 82 55 320
TSM30A-C11F 3000 138×1200 70-1100 3 210 82 55 320
TSM30B-C11F 3000 138×1200 70-1100 3 210 82 55 320

Remarks:
1. Please get the actual comprehensive bearing capacity of forklifts and their attachments from the factory.
2. Fork positioning and side shifting are added with 1 more oil circuit respectively.
3. A stands for standard, B, side shifting, C, the third generation product, D, the fourth generation product, F, hanging-fork.
4. The various types listed above are the common products, and other types of products can also be supplied in accordance with different brands of forklifts and special working conditions.
