Tyre Clamp

Product Name: Double arm Tyre Clamp

Tyre Clamp
• The ingenious clamp arm design with a smooth surface and small thinness enable it to be operated in a narrow space and reduce the damage to a tire.
• High safety performance is ensured for its two-way hydraulic rotation within 360°and self locking at any angle.
• The hydraulic elements are designed to be reasonable and durable.
• The compact structure and light weight increase the forklift’s service life.
Product Parameters
Inquiry
Product Parameters
It can realize the safe and efficient carrying and stacking of various tires without the use of pallets, and greatly reduces work intensity, saves large amount of storage room and improves work efficiency.

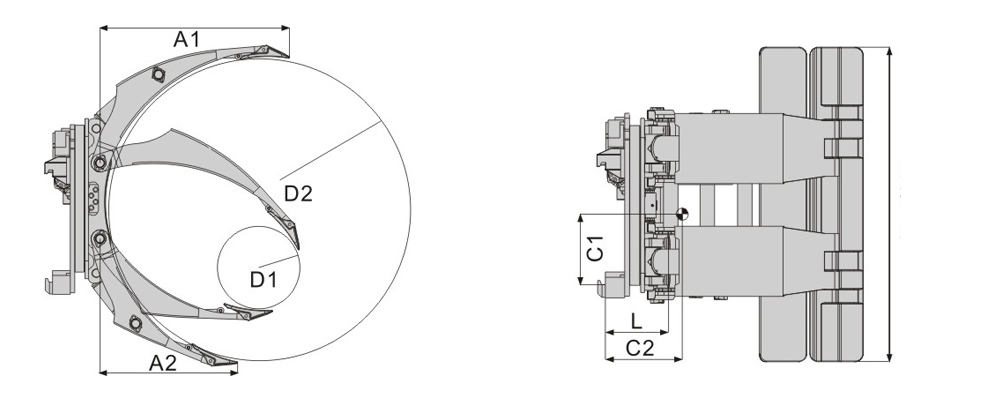

Model Carrying Capacity Frame dimension Opening range Installation Grade Self-weight Load Loss Distance Horizontal Center of Gravity Verticla Center Gravity

Kg A1×A2(mm) (mm)
Kg L(mm) C2(mm) C1(mm)
TSC15A-G13C 1500 890-606 580-1350 2 800 246 287 353
TSC15A-G13F 1500 890-606 580-1350 2 840 246 287 354
TSC15B-G13C 1500 890-606 250-1350 2 820 246 287 353
TSC15B-G13F 1500 890-606 250-1350 2 860 246 287 354
TSC20A-G13C 2000 890-606 580-1350 2/3 818 248 328 358
TSC20A-G13F 2000 890-606 580-1350 2/3 858 248 328 359
TSC20B-G13C 2000 890-606 250-1350 2/3 838 248 328 258
TSC20B-G13F 2000 890-606 250-1350 2/3 878 248 328 259
TSC20A-G16C 2000 952-576 600-1600 2/3 837 252 328 258
TSC20A-G16F 2000 952-576 600-1600 2/3 877 252 328 259
TSC20B-G16C 2000 952-576 300-1600 2/3 857 252 328 258
TSC20B-G16F 2000 952-576 300-1600 2/3 897 252 328 259

Remarks:
1.Please get the actual comprehensive bearing capacity of forklifts and their attachments from the factory.
2.The clamping and rotation are added with 1 more oil circuit each respectively.
3.A stands for fixed short arm, B, adjustable short arm, G, standard, C ,clamping plank size 1100mm, and F clamping plank size 1500mm.
4.The various types listed above are the common products, and other types of products can also be supplied in accordance with different brands of forklifts and special working conditions.
