Carton Clamp

Product Name: Carton Clamps J-Series

Carton Clamp
• Specific contact pad for various applications
• Small-strip type rubber board works to increase abrasion coefficient to clamp goods safely
• Excellent operation field of vision
• Visilie manometer is attached for the control of oil pressure coefficient
• Intelligent valve is attached for the regulation of oil pressure flow
Product Parameters
Inquiry
Product Parameters
Applicable in such fields as storage,home electric appliance and electronics for handling and stacking paper carton goods without a tray.

紙箱夾|家電夾抱機(jī)|家電抱夾|叉車抱頭|叉車紙箱夾|叉車屬具紙箱夾

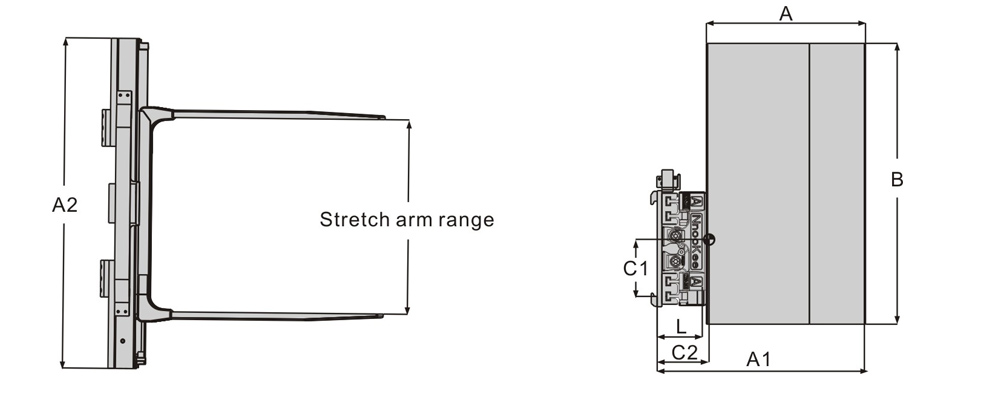

Model Carrying Capacity Frame dimension Size of clamp size Opening range Installation Grade Self-weight Load Loss Distance Horizontal Center of Gravity Verticla Center Gravity

Kg A1×A2(mm) A×B(mm) (mm)
Kg L(mm) C1(mm) C2(mm)
BCM08B-J15G 800 1020×1000 850×1500 510-1500 2 600 165 280 239
BCM08B-J18Y 800 1120×1200 950×1500 590-1800 2 625 168 284 239
BCM10B-J15G 1000 1020×1000 850×1500 510-1500 2 635 165 280 239
BCM10B-J18Y 1000 1120×1200 950×1500 590-1800 2 660 168 284 239
BCM12B-J15G 1200 1020×1000 850×1500 510-1500 2 680 165 280 239
BCM12B-J18Y 1200 1120×1200 950×1500 590-1800 2 710 168 284 239

Remarks:
1.Please get the actual comprehensive bearing capacity of forklifts and their attachments from the factory.
2.The clamping and side shifting are added with one more oil circuit respectively.
3.B stands for side shifting, J, the sixth generation product, and  F and Y, clamp arm size.
4.The various types listed above are the common products of Sino-German Nnookee, and other types of products can also be supplied in accordance with different brands of forklifts and special working conditions.
