Bar Arm Clamps

Product Name: Bar Arm Clamps

Bar Arm Clamps
• The built-in side shifter increases lateral displacement for convenient operation.
• The flexible aluminum alloy guide slot reduces the dead weight of a product and increases the service life of a forklift .
• A pressure retaining valve is equipped to avoid damage to the goods due to the abrupt crack of the oil pipe.
• The hydraulic elements are designed to be reasonable and durable.
Product Parameters
Inquiry
Product Parameters
Suitable for the no-pallet carrying and stacking of round objects such as nonwovens, carpets, chemical fibers, etc.

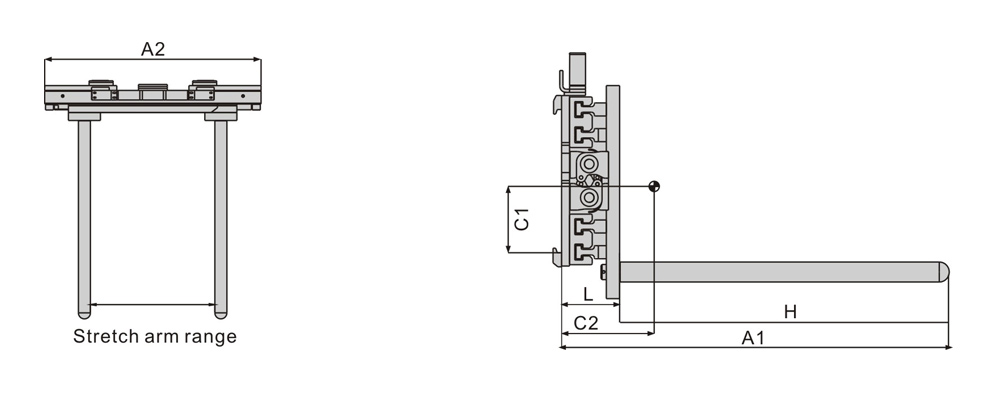

Model Carrying Capacity Frame dimension Bar Arm Length Opening range Installation Grade Self-weight Load Loss Distance Horizontal Center of Gravity Verticla Center Gravity

Kg A1×A2(mm)
(mm)
Kg L(mm) C2(mm) C1(mm)
SRC10B-E13A 1000 916×1000 700 340-1380 2 497 216 128 244
SRC10B-E15C 1000 1016×1000 800 420-1550 2 510 216 137 240
SRC10B-E17F 1000 1116×1000 900 500-1700 2 511 216 146 238
SRC10B-E18H 1000 1216×1200 1000 450-1800 2 530 216 156 237
SRC15B-E15F 1500 1118×1000 900 420-1550 2/3 521 218 146 238
SRC15B-E18H 1500 1218×1200 1000 450-1800 2/3 545 218 156 237
SRC20B-E15F 2000 1118×1000 900 420-1550 3 540 218 146 238
SRC20B-E18H 2000 1218×1200 1000 450-1800 3 565 218 156 237

Remarks:
1.Please get the actual comprehensive bearing capacity of forklifts and their attachments from the factory.
2.The clamping and side shifting are added with one more oil circuit respectively.
3.B stands for side shifting, E, the fifth generation product, and A, C, F and H, bar length.
4.The various types listed above are the common products of Sino-German Nnookee, and other types of products can also be supplied in accordance with different brands of forklifts and special working conditions.
