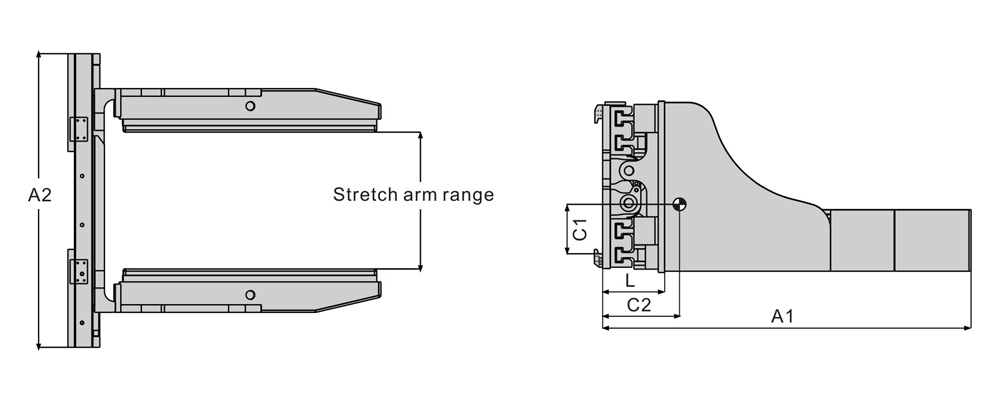

Model	Carrying Capacity	Frame dimension	Size of clamp size	Opening Range	Installation Grade	Self-weight	Load Loss Distance	Horizontal Center of Gravity	Verticla Center Gravity
	kg	A1×A2	mm	mm		kg	L(mm)	C1(mm)	C2(mm)
KSM15A-E16C	1500	1130×1350	1000×240	260-1600	2	705	241	405	578
KSM15B-E16C	1500	1130×1350	1000×240	260-1600	2	705	241	405	578
KSM15B-E16D	1500	1330×1350	1200×240	260-1600	2	750	241	410	580
KSM15B-E16F	1500	1530×1350	1400×300	260-1600	2	810	241	414	583
KSM20A-E16C	2000	1132×1350	1000×240	260-1600	2/3	805	243	408	580
KSM20B-E16C	2000	1132×1350	1000×240	260-1600	2/3	805	243	408	580
KSM20B-E16D	2000	1332×1350	1200×240	260-1600	2/3	850	243	413	582
KSM20B-E16F	2000	1532×1350	1400×300	260-1600	2/3	910	243	417	585
KSM25A-E16C	2500	1133×1350	1000×240	260-1600	3	870	248	410	581
KSM25B-E16C	2500	1133×1350	1000×240	260-1600	3	870	248	410	581
KSM25B-E16D	2500	1333×1350	1200×240	260-1600	3	920	248	415	583
KSM25B-E16F	2500	1533×1350	1400×300	260-1600	3	975	248	419	586

Remarks:
1.Please get the actual comprehensive bearing capacity of forklifts and their attachments from the factory.
2.The clamping and side shifting are added with one more oil circuit respectively.
3.A stands for standard, B side shifting, E, the fifth generation product, and C, D and F, clamp arm size.
4.The various types listed above are the common products of Sino-German Nnookee, and other types of products can also be supplied in accordance with different brands of forklifts and special working conditions.
